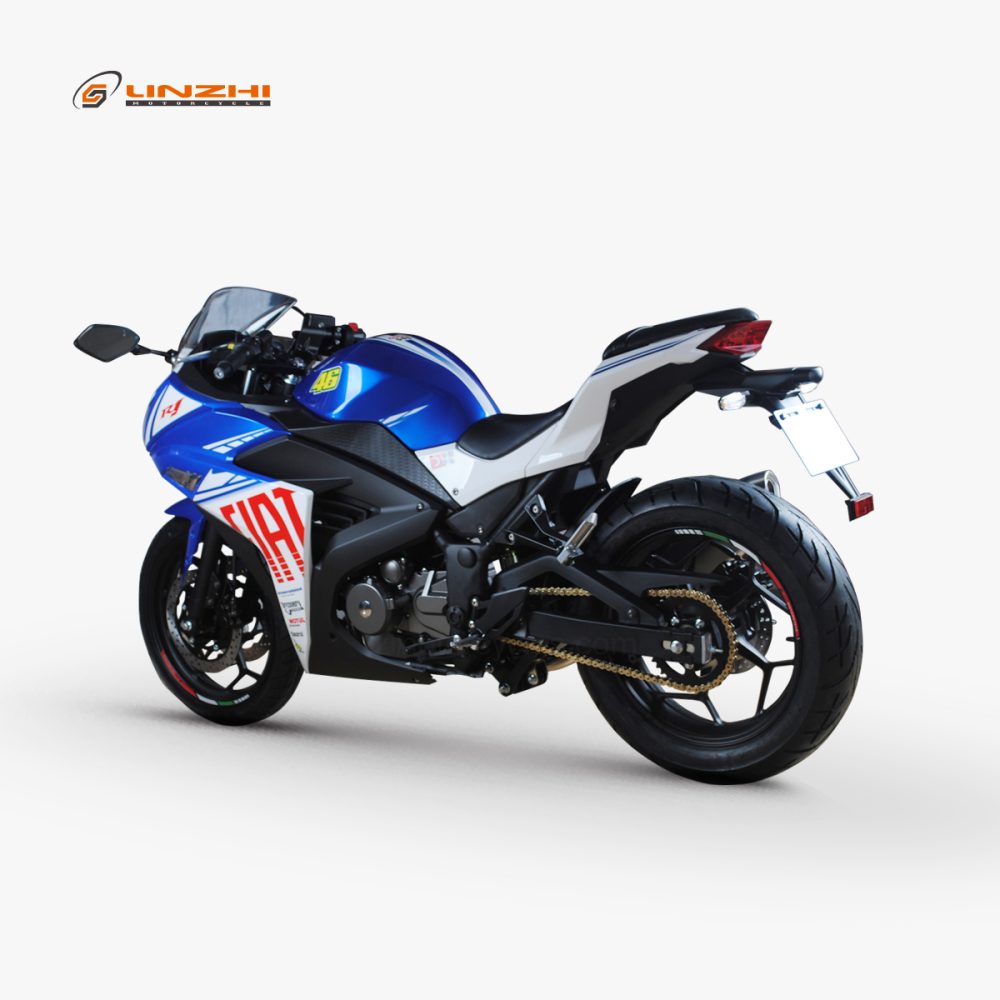

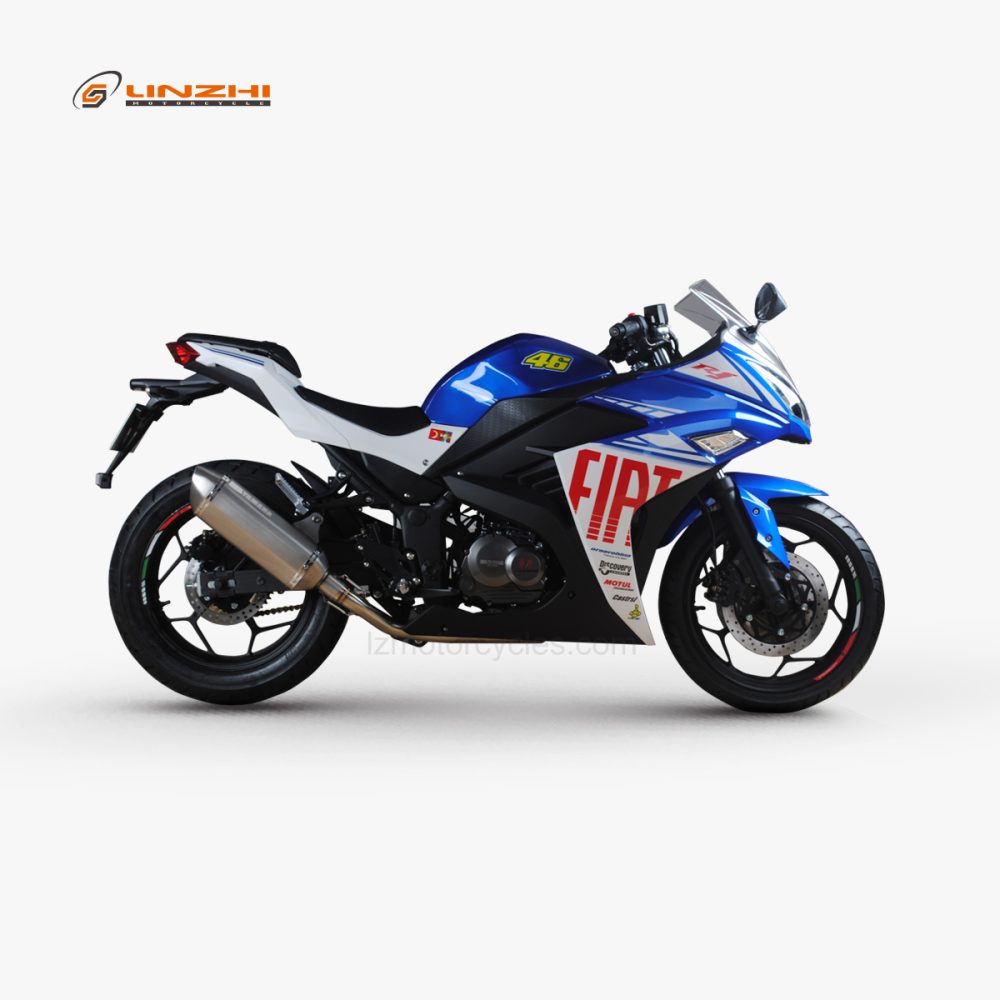

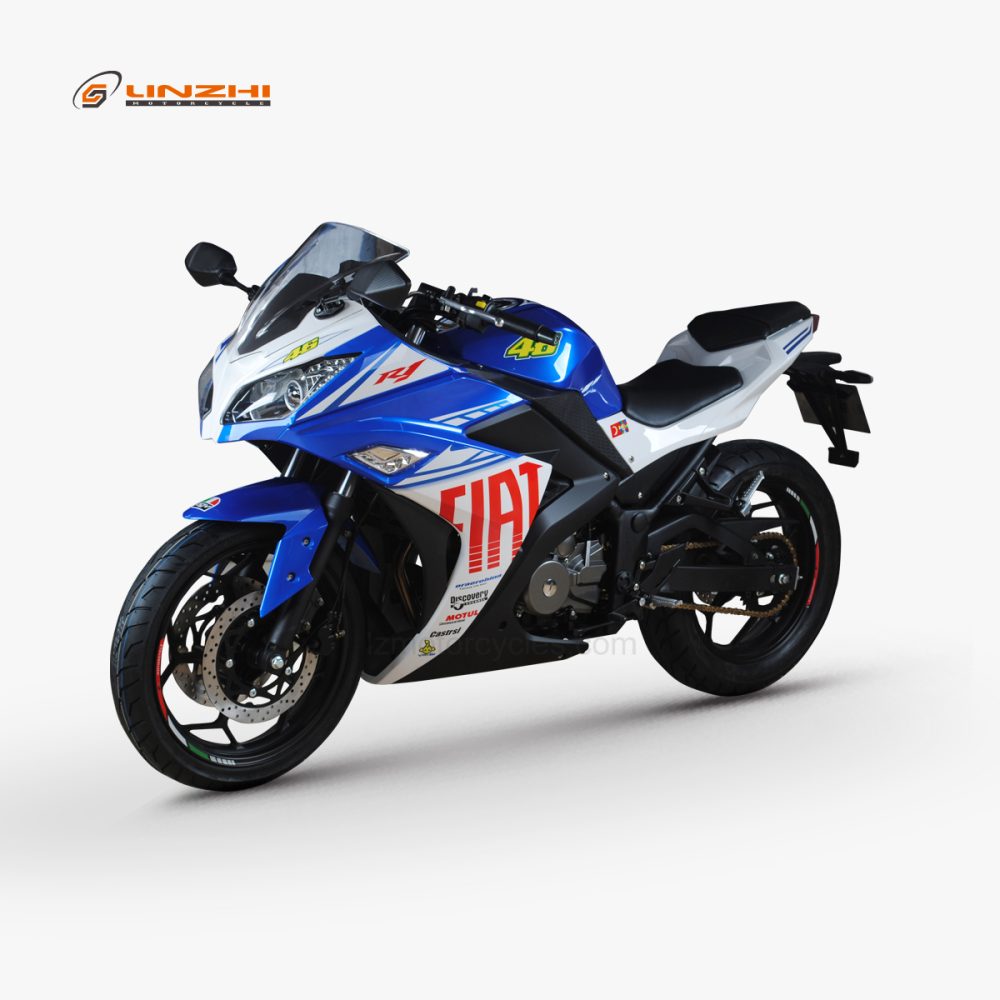

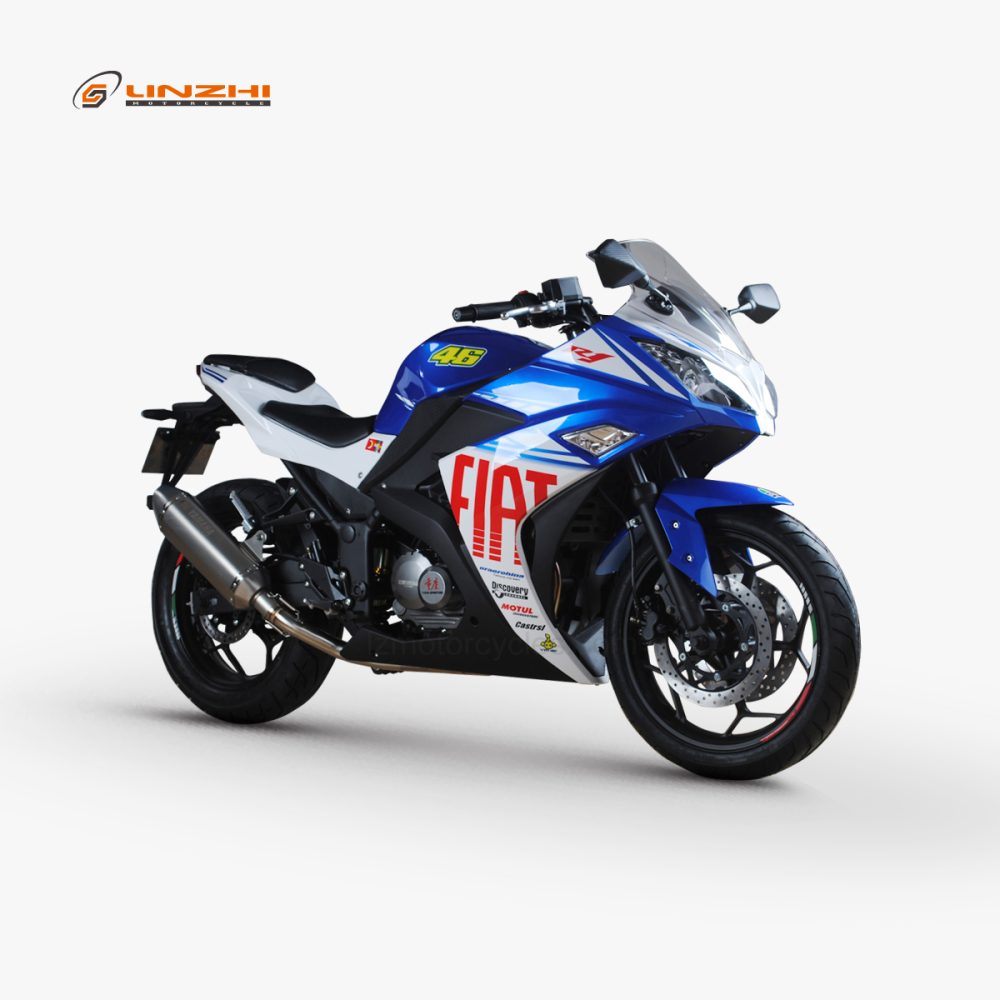

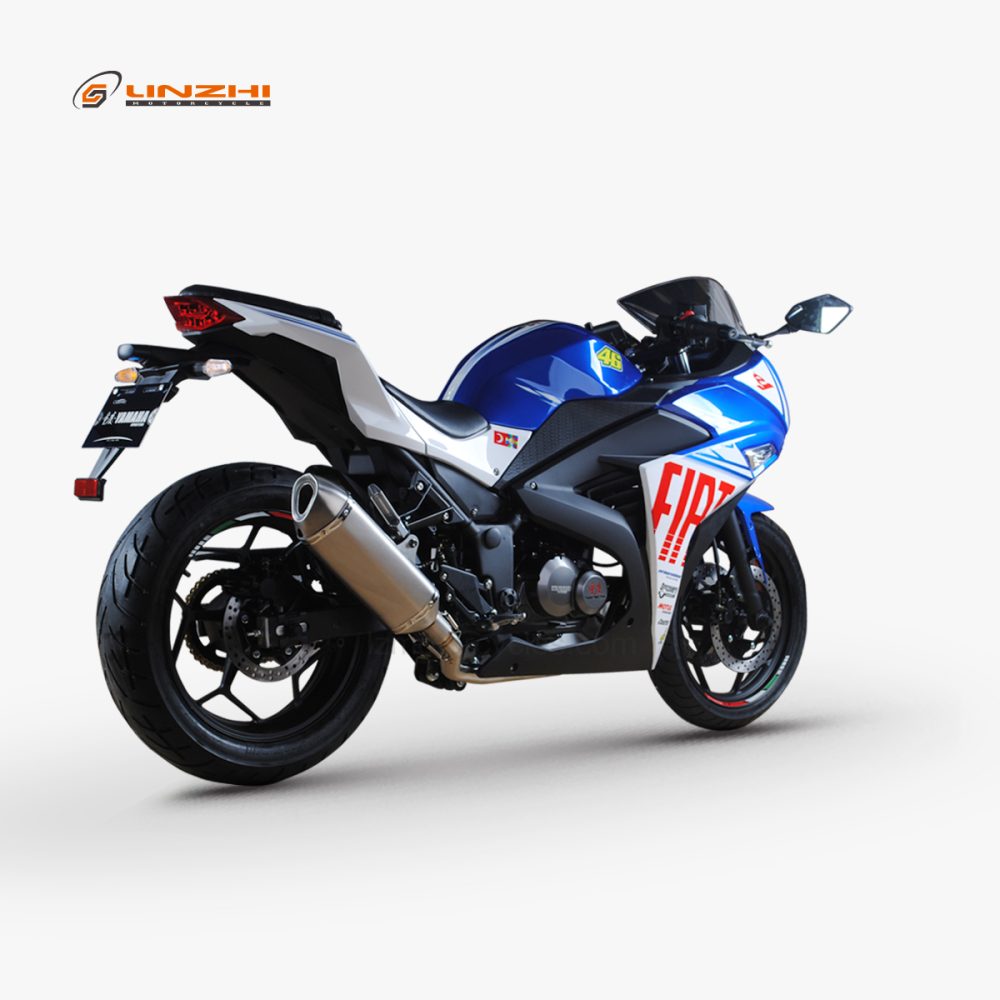

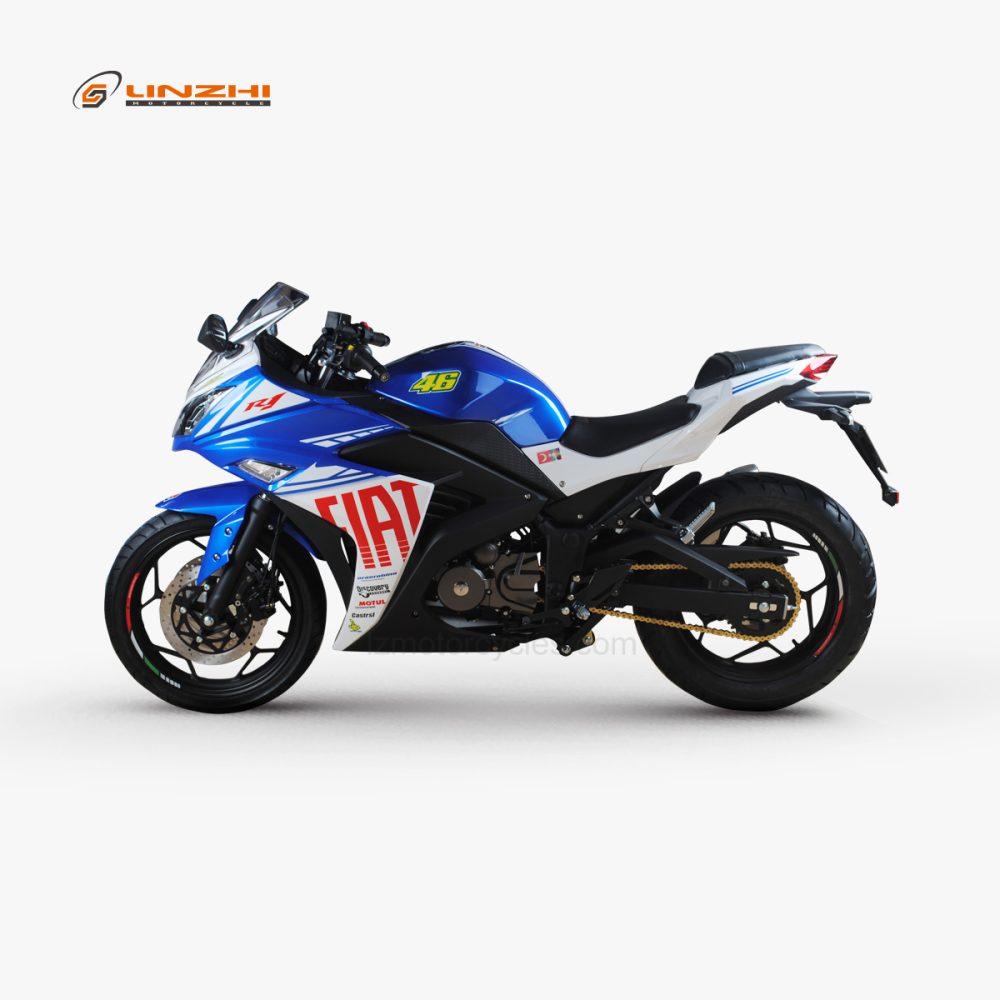

HLR200S-2

Gasoline Racing Motorcycle

This motorcycle features a single-cylinder, 196cc air-cooled engine with a bore stroke of 67.0*55.7mm and a compression ratio of 9.2:1. The engine delivers a maximum power of 10.0 kW at 7000 rpm and a peak torque of 13 Nm at 5500 rpm, ensuring reliable performance. It comes with both electric and kick-start systems, a CDI/ECU ignition, and a chain-drive transmission with a multi-disk wet clutch. Equipped with normal front and central rear suspension, the bike also includes disc brakes on both ends for effective stopping power. The tyres, sized at 110/70-17 (front) and 140/70-17 (rear), are mounted on durable alloy wheels. With dimensions of 2010mm (L) x 715mm (W) x 1110mm (H), a wheelbase of 1416mm, and a ground clearance of 180mm, it offers excellent stability and comfort. The motorcycle has a 7-liter fuel tank, a top speed of 110 km/h, and a maximum load capacity of 150 kg, making it suitable for diverse riding needs.
