HLR400S-8

Products Gasoline Racing Motorcycles HLR400S-8

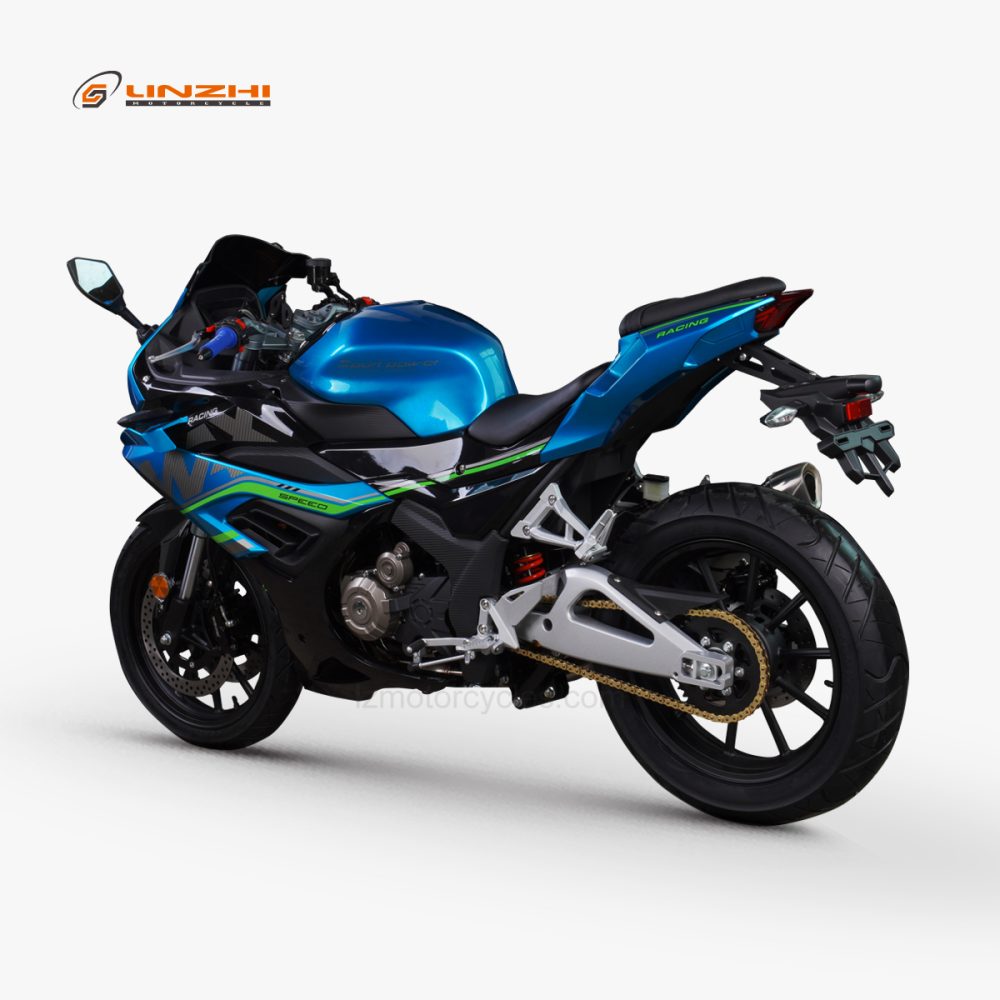

HLR400S-8

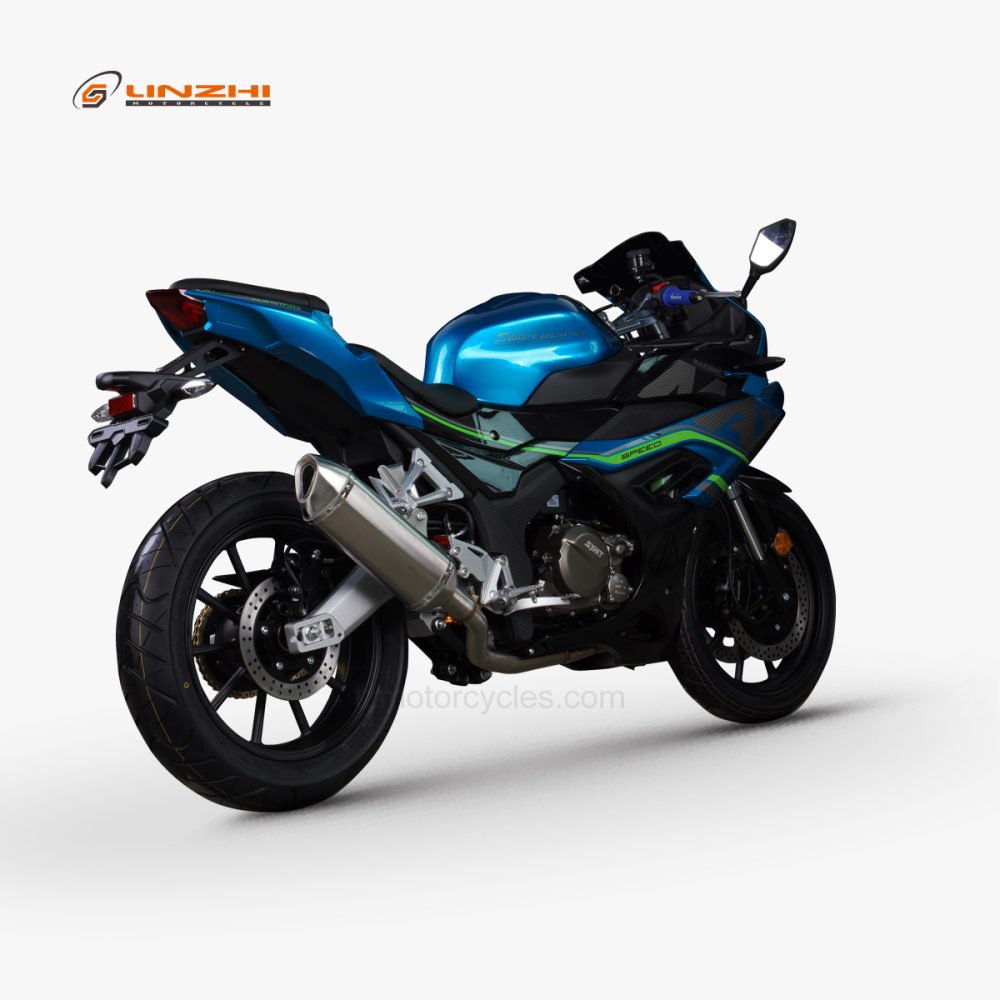

HLR400S-8 - Image 2

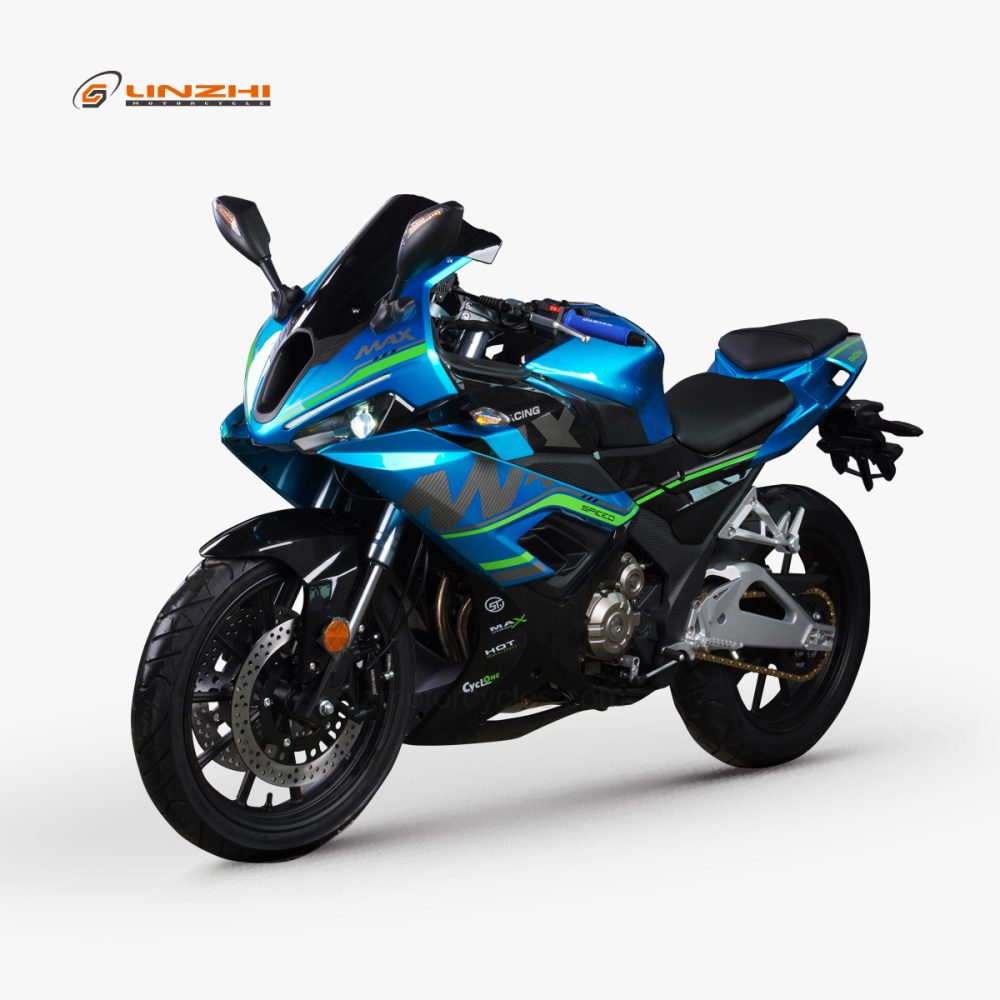

HLR400S-8 - Image 3

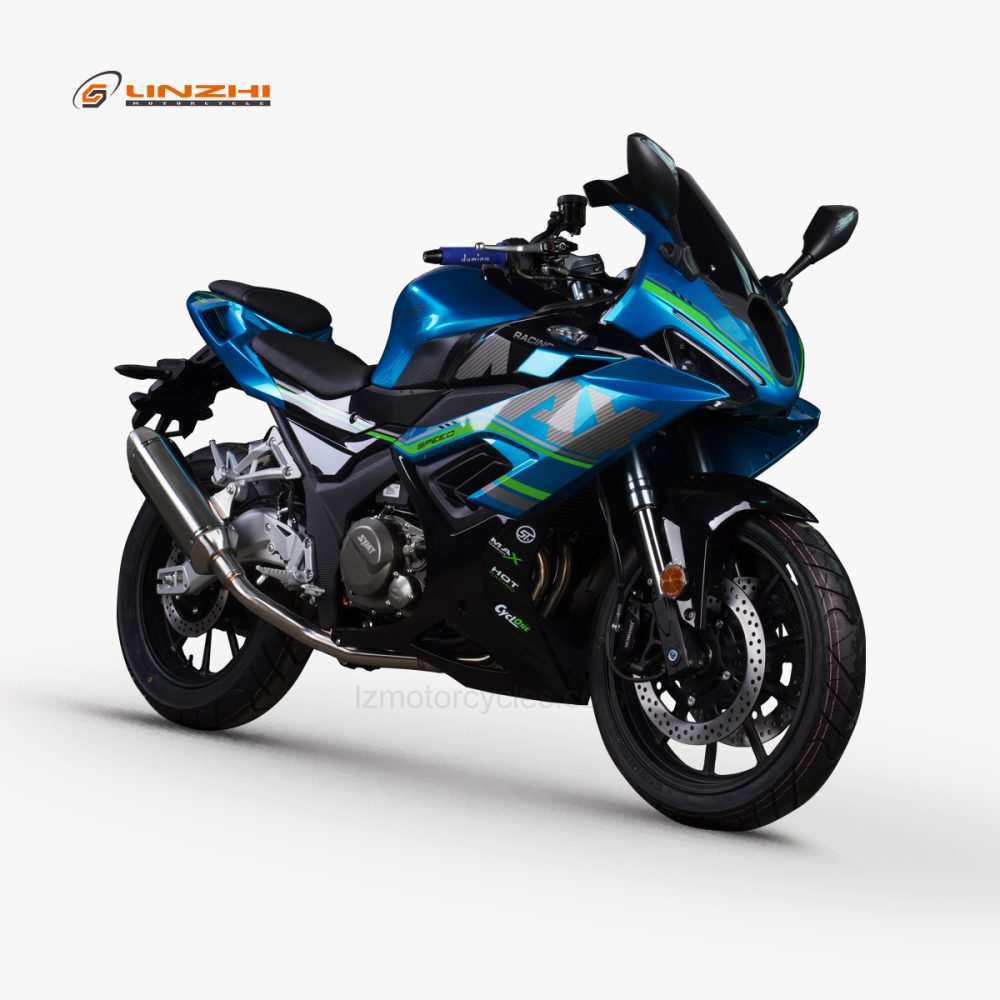

HLR400S-8 - Image 4

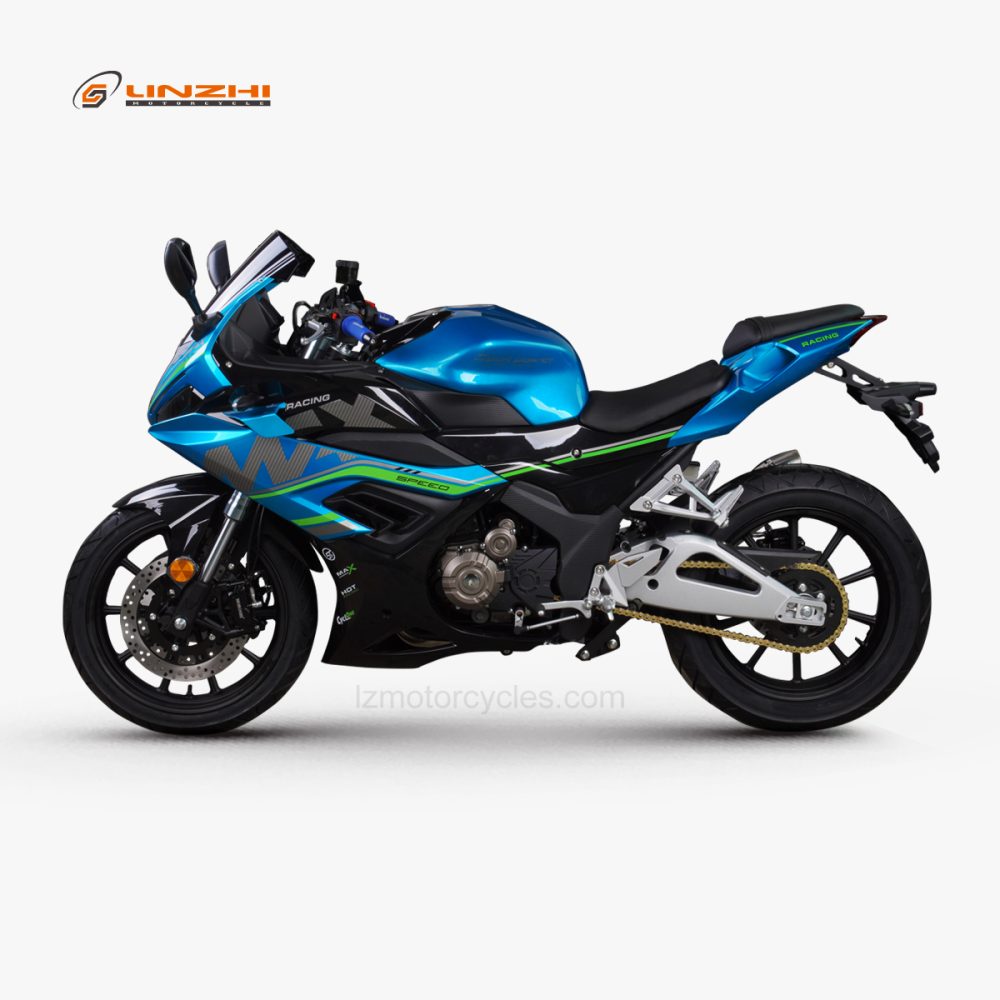

HLR400S-8 - Image 5

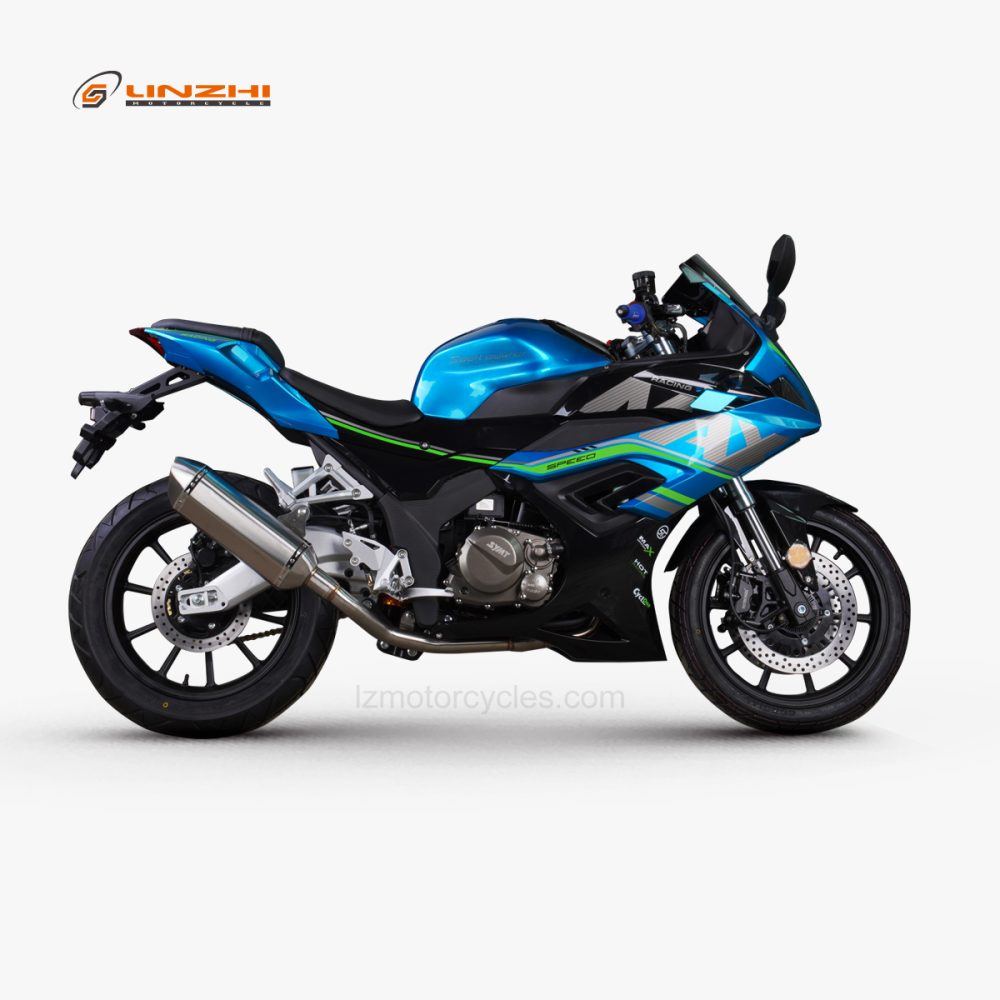

HLR400S-8 - Image 6

HLR400S-8 - Image 7

Gasoline Racing Motorcycle

This double-cylinder motorcycle features a 394cc engine with liquid cooling, producing 25.5 kW at 7800 rpm and 33 Nm of torque at 5500 rpm. It has an electric starting system and CDI/ECU ignition. The suspension consists of an inverted front and central rear setup, while the braking system includes disc brakes with ABS. It rides on 110/70-17 front and 150/70-17 rear alloy wheels. The vehicle measures 2010mm in length, 715mm in width, and 1110mm in height, with a 1420mm wheelbase and 180mm ground clearance. The seat height is 790mm, and it has a 7-liter tank. It can reach a top speed of 130 km/h and carry a maximum load of 150 kg.

Description
Reviews (0)

Specifications

Engine and Transmission

Engine Type: Double Cylinder
Valve: 4 Stroke
Cooling System: Liquid Cooling
Bore Stroke (mm): 63.5*62.2
Displacement (CC): 394
Compression Ratio: 10.5:1
Fuel Supply: Carburetor/EFI
Starting System: Electric
Ignition: CDI/ECU
Max Power (kW/rpm): 25.5/7800
Max Torque (N·m/rpm): 33/5500
Clutch Type: Oil Bath Multi-chip Type
Transmission: Chain Drive

Suspension, Brakes, and Tyres

Suspension (Fr./Rr.): Inverted, Central
Brake System (Fr./Rr.): Disc, ABS, Disc, ABS
Tyre Size (Fr./Rr.): 110/70-17, 150/70-17
Wheel Type: Alloy Wheel

Dimensions

Vehicle Size (mm): 2010 * 715 * 1110
Wheel Base (mm): 1420
Ground Clearance (mm): 180
Seat Height (mm): 790
Tank Capacity (L): 7

Performance

Max. Speed (km/h): 130
Max. Load (kg): 150
